产品特点:

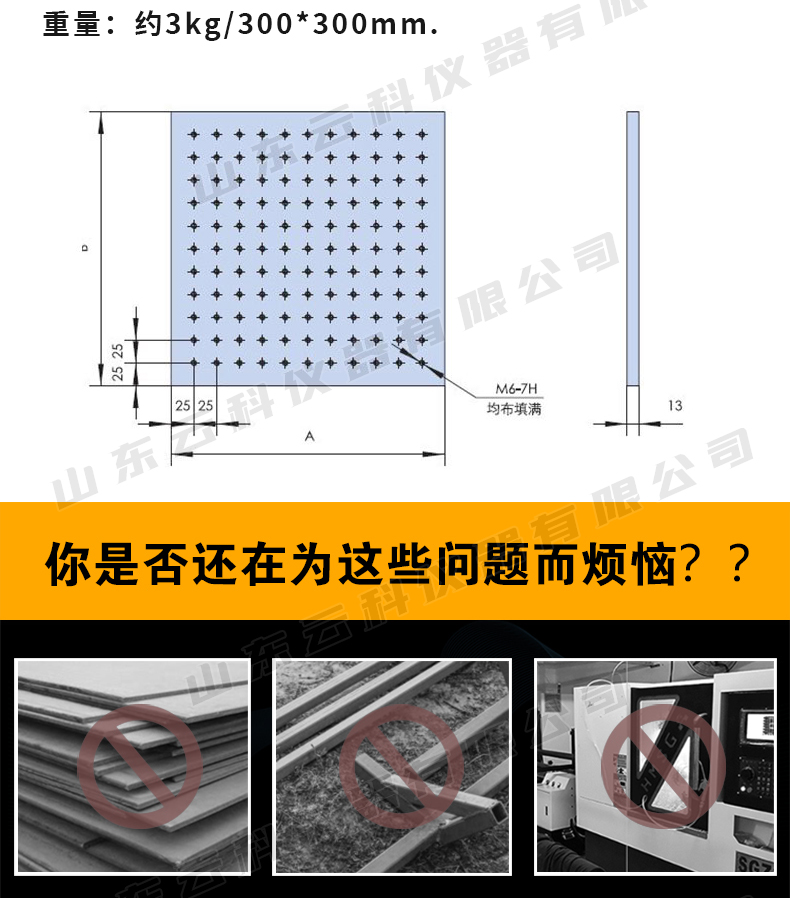

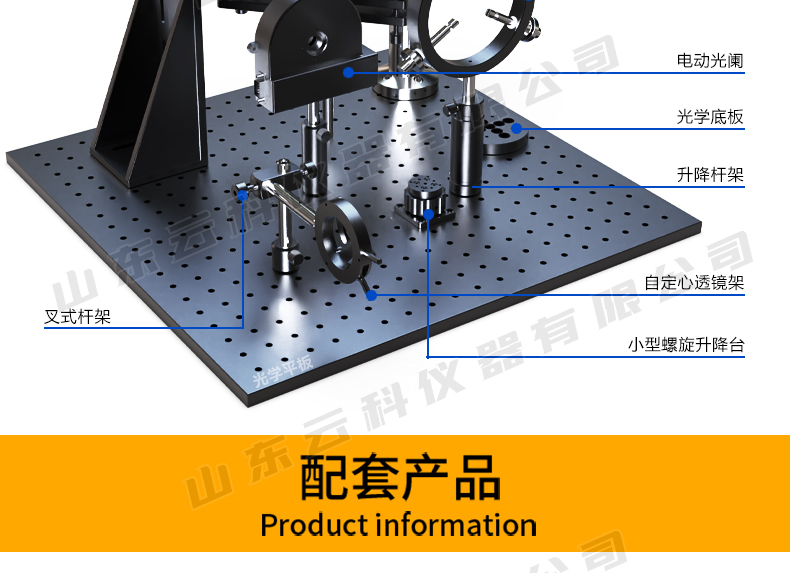

1.台面阵列的标准M6/孔距25*25MM螺纹孔便于固定各种调整架;
2.厚度: 13MM/15MM/20MM;
3.平面度: 0.02-0.05;
4.材料:铝合金表面发黑氧化处理,美观耐用;
5.接受特殊规格、特殊材料订做。
产品介绍:

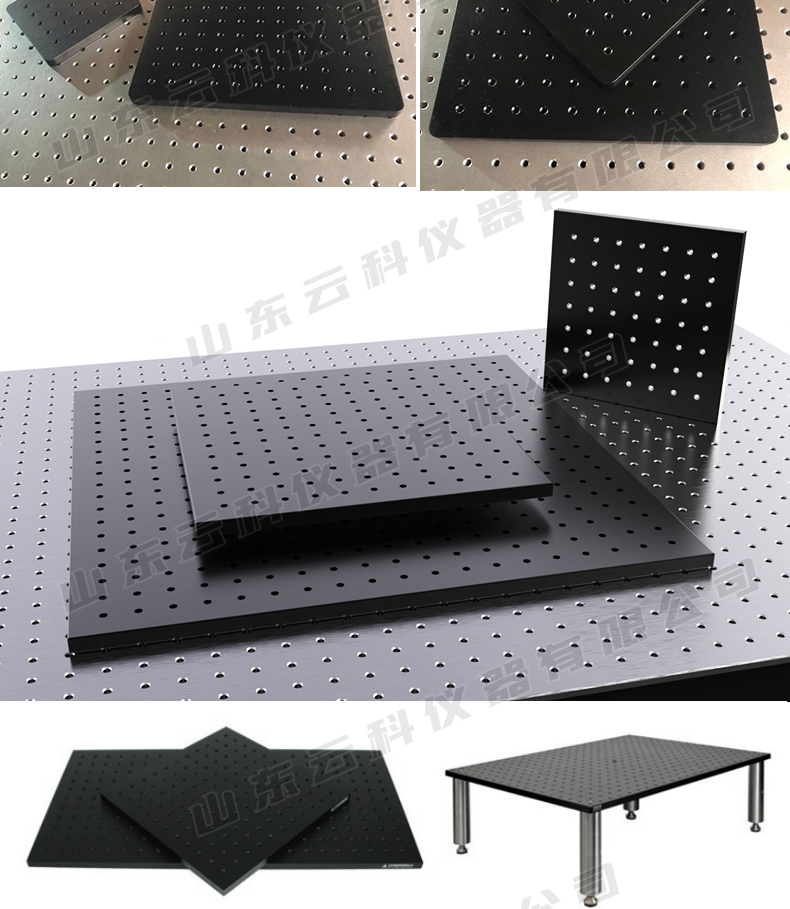

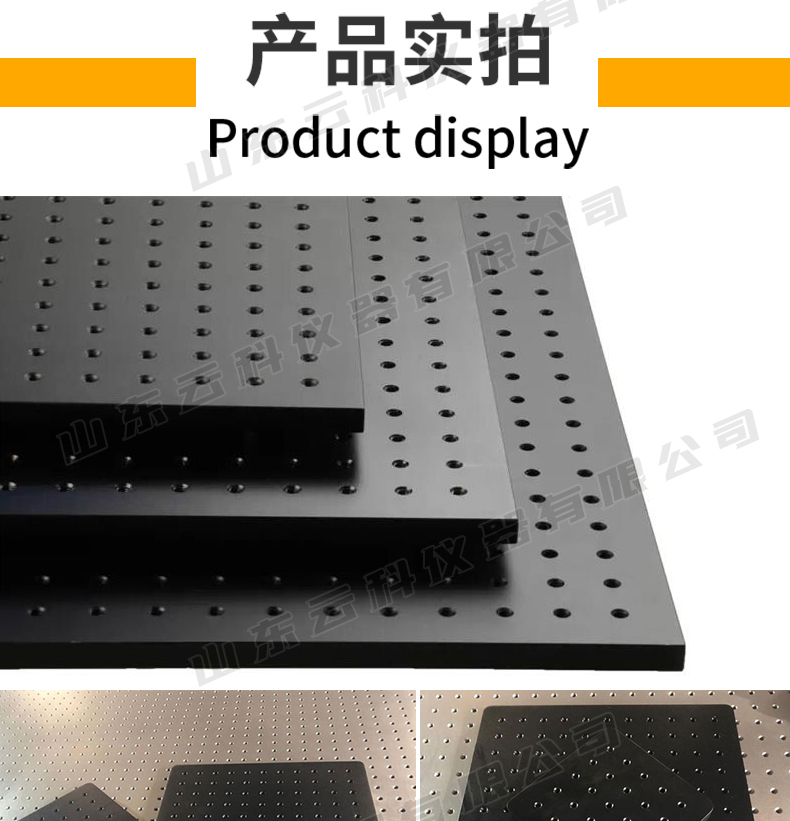

采用优质铝合金精加工而成,重量轻,容易搬动,面阵列的标准孔距螺纹孔便于固定各种调整架,表面氧化处理美观耐用,接受特殊规格,特殊材料定做。
型号 | 尺寸 |
PTP01-01-0013 | 长宽厚100x100x13mm |
PTP013-013-0013 | 长宽厚130x130x13mm |
PTP015-015-0013 | 长宽厚150x150x13mm |
PTP02-01-0013 | 长宽厚200x100x13mm |
PTP02-015-0013 | 长宽厚200x150x13mm |
PTP02-02-0013 | 长宽厚200x200x13mm |
PTP025-025-0013 | 长宽厚250x250x13mm |
PTP03-01-0013 | 长宽厚300x100x13mm |
PTP03-02-0013 | 长宽厚300x200x13mm |
PTP03-025-0013 | 长宽厚300x250x13mm |
PTP03-03-0013 | 长宽厚300x300x13mm |
PTP035-035-0013 | 长宽厚350x350x13mm |
PTP04-01-0013 | 长宽厚400x100x13mm |
PTP04-02-0013 | 长宽厚400x200x13mm |
PTP04-03-0013 | 长宽厚400x300x13mm |
PTP04-04-0013 | 长宽厚400x400x13mm |
PTP045-03-0013 | 长宽厚450x300x13mm |
PTP045-045-0013 | 长宽厚450x450x13mm |
PTP05-016-0013 | 长宽厚500x160x13mm |
PTP05-02-0013 | 长宽厚500x200x13mm |
PTP05-045-0013 | 长宽厚500x450x13mm |
PTP05-05-0013 | 长宽厚500x500x13mm |
PTP06-03-0013 | 长宽厚600x300x13 |
PTP06-04-0013 | 长宽厚600x400x13mm |
PTP06-045-0013 | 长宽厚600x450x13mm |
PTP06-06-0013 | 长宽厚600x600x13mm |
PTP07-03-0013 | 长宽厚700x300x13mm |
PTP074-03-0013 | 长宽厚740x300x13mm |
PTP08-06-0013 | 长宽厚800x600x13mm |
PTP08-08-0013 | 长宽厚800x800x13mm |
PTP085-055-0013 | 长宽厚850x550x13mm |
PTP09-03-0013 | 长宽厚900x300x13mm |
PTP09-04-0013 | 长宽厚900x400x13mm |
PTP09-06-0013 | 长宽厚900x600x13mm |
PTP12-03-0013 | 长宽厚1200x300x13mm |
PTP12-06-0013 | 长宽厚1200x600x13mm |
PTP12-09-0013 | 长宽厚1200x900x13mm |
PTP15-12-0013 | 长宽厚1500x1200x13mm |

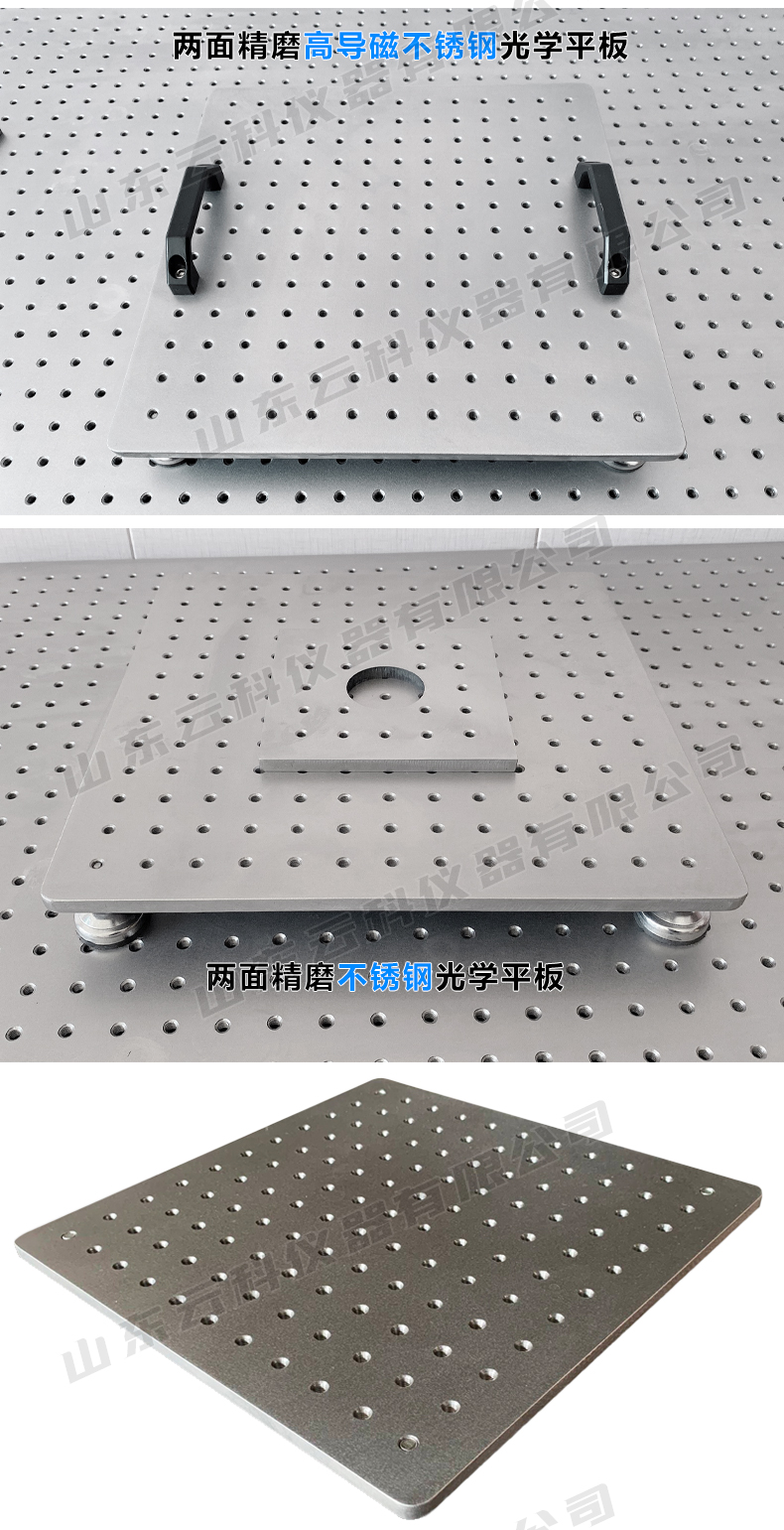

不锈钢光学平板 PTP06-06-0013-304 | 长宽厚600x600x13mm |
导磁不锈钢光学平板 PTPM05-05-0013 | 长宽厚500x500x13mm |
导磁光学平板 PTPM06-06-0013 | 长宽厚600x600x13mm |
导磁平板 PTPMC02-008-00095 | 长宽厚200x80x9.5mm |
导磁光学平板 PTPM02-008-00095 | 长宽厚200x80x9.5mm |

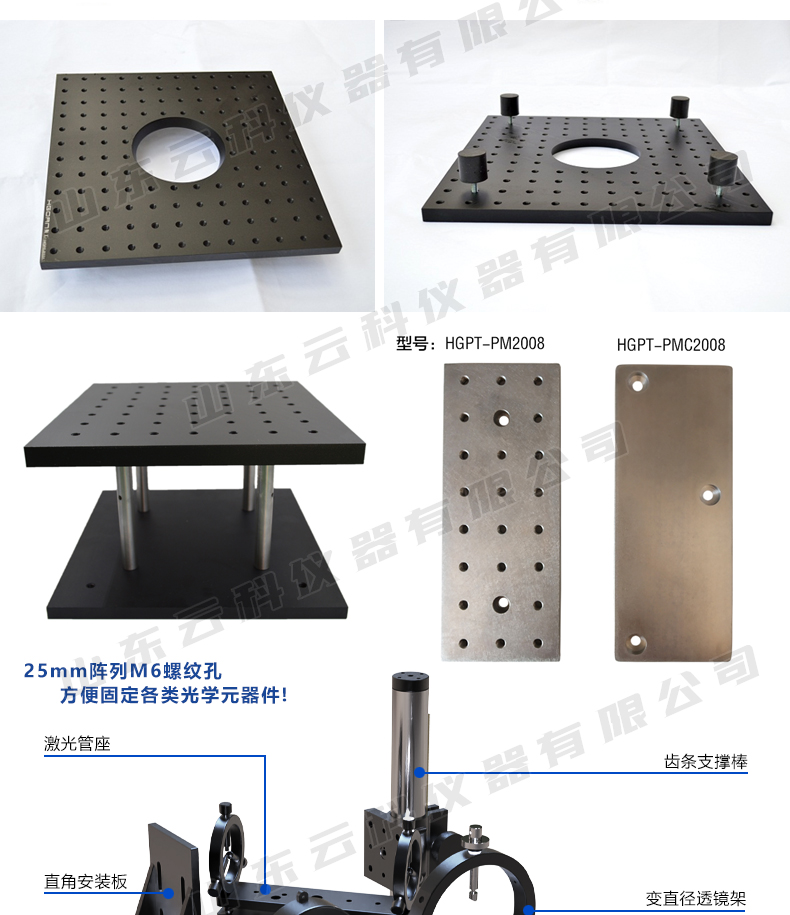

中心开孔光学平板 PTP03-03-0013Φ01 | 长宽厚300x300x13mm |
