Product features:

★ it is made of high-quality stainless steel with high precision and elegant appearance

★ various specifications can meet different needs

★ it can be used with other adjustment racks of the company and has strong universality

Product features:

1. The probe table is mainly used in the research and development of precision electrical measurement of semiconductor industry, photoelectric industry, integrated circuit and packaging, complex and high-speed devices, in order to ensure quality and reliability, and reduce the research and development time and the cost of device manufacturing process.

2. HGPS100 probe station is a manual probe station with complete configuration, good integrity and economic benefits. It is applicable to IGBT, FRD, voltage and current test, solar cell test, diode transistor test and back electrode test in dry wafer factories, research institutes and universities.

3. In addition to conventional component related tests, HGPS100 probe table is also widely used in crack detection, flaw detection and jewelry identification of various materials and devices.

Product features

★ HGPS02 probe adjustment seat adopts modular and exquisite design, supporting HGPS01BT probe arm, and three probe installation modes of horizontal / vertical / 45 °, with high cost performance and wide application range;

★ the probe base is specially designed to insulate the conductive part from the base plate to prevent electric leakage and ensure the measurement accuracy;

★ the probe clamping is convenient and fast, and the probe clamping rod is all copper design with good conductivity;

★ base installation method: the base is magnetic adsorption type and can also be fixed with screws.

Product features

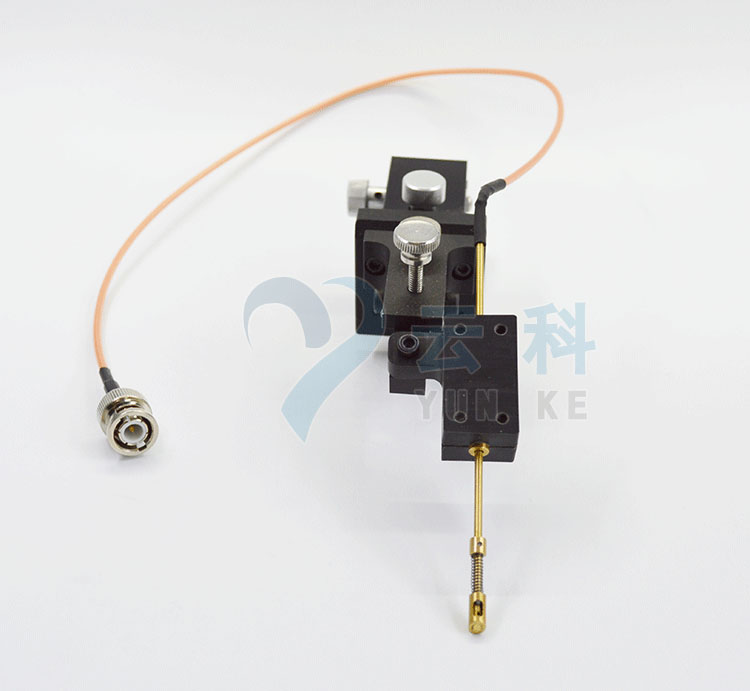

★ Yunke HGPS01B probe adjustment seat adopts modular design, including three-dimensional fine adjustment table, probe clamp, table adapter, probe clamping rod, base, etc;

★ the fine adjustment table adopts British fine tooth screw fine adjustment control, with a pitch of 0.635mm;

★ the probe clamping rod clamp is made of non-metallic insulating material, Insulate the conductive part from the displacement table to prevent leakage accidents;

★ the probe clamping is convenient and fast to ensure convenient use. The probe clamping rod is all copper design with good conductivity;

★ HGPS01BT horizontal probe arm is used in combination with various installation methods: horizontal, vertical and 45 degrees. Humanized design truly realizes multiple uses of a product, which is economical and suitable for a variety of testing occasions.

Product features

HGMS series fine thread pair, made of stainless steel, M6x0.25 ultra-fine thread (the screw rotates for one circle, and the axial displacement is only 0.25MM), and the sensitivity reaches 0.001MM. When quantitative adjustment is not required, it can provide adjustment function with higher accuracy than ordinary micrometer head. Equipped with copper nuts, excellent wear resistance, locking function, anti vibration and anti loosening. The installation dimension is the same as that of the micrometer head, which is convenient for interchange. Two end and tail structures are convenient to use.

It is suitable for micro motion design, automation design, instrument design, aerospace design and many other fields.

The high-quality stainless steel rod body and high-quality copper sleeve are adopted, and the products are produced after blanking, rough cutting, fine cutting, rough grinding, fine grinding, quality control, logistics control and other processes, so as to ensure that the products sent to users are one in a hundred.
